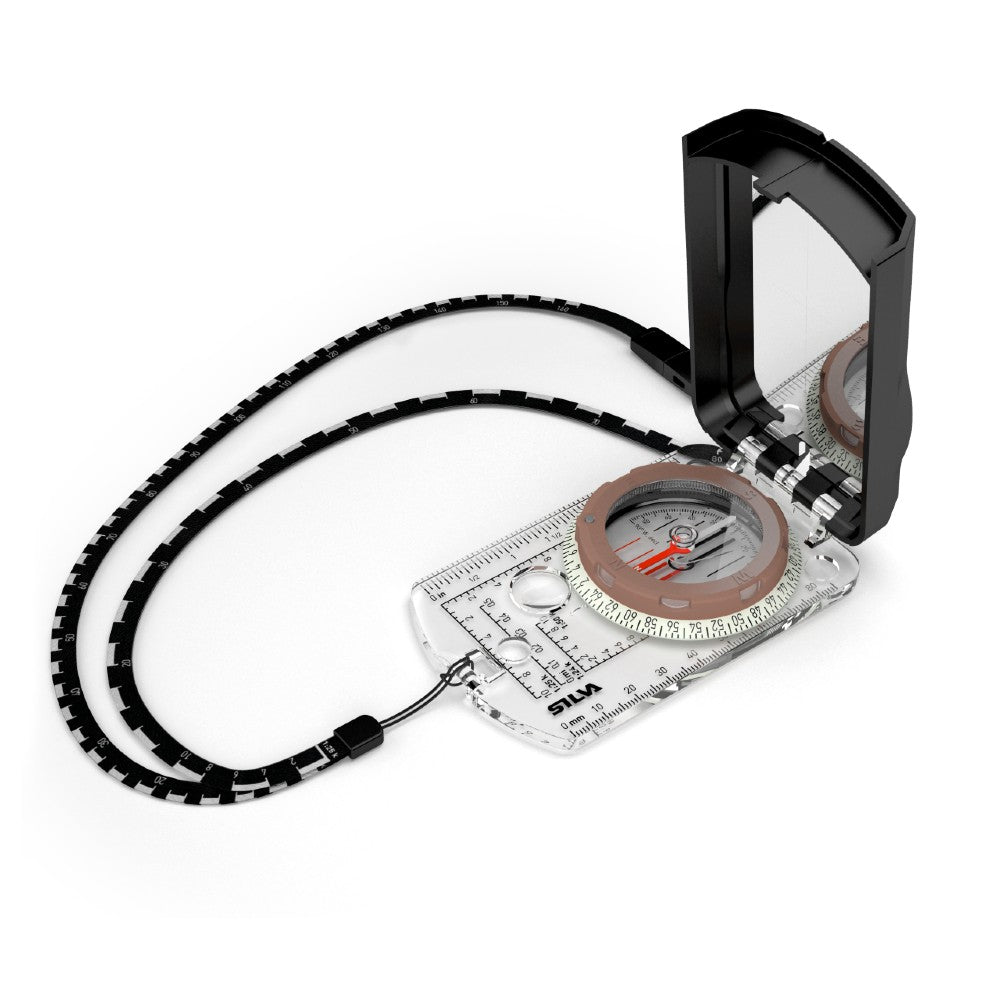

Silva 16DCL Sighting Compass

The 16DCL is mainly used by the infantry as a soldier’s or officer’s compass. Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass had a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgment of your route or to plan your route in advance. This model has a circular spirit level (bubble level) to indicate whether a surface is horizontal (level) or vertical.

Features

• Liquid filled capsule
• Sapphire jewel bearing
• High quality steel needle
• Hardened steel pivot
• Mirror Sighting System
• Magnifying lens
• Declination adjustment
• Clinometer
• Luminous markings
• Luminous graduation ring
• 4 hours Illumination/active time after activation in light
• Silicon friction feet
• Other Tactile grip ring
• Patented red/black N/S lines in capsule GPS scales
• Complete baseplate cover

Specifications

• Accuracy: +/- 17.8mils/1°
• Graduation: 6400/360°
• Materials: Acrylic, PC/ABS, TPU/ Acetal
• Scales: 1:25k, 1:50k, GPS scales, Lanyard 1:25 / 1:50 mm
• Size: 64x108x20 mm
• Type of compass: Baseplate, Mirror Sighting
• Temperature operating range: -30 to +60 °C
• Tunable capsule: Yes
• Weight: 86g
