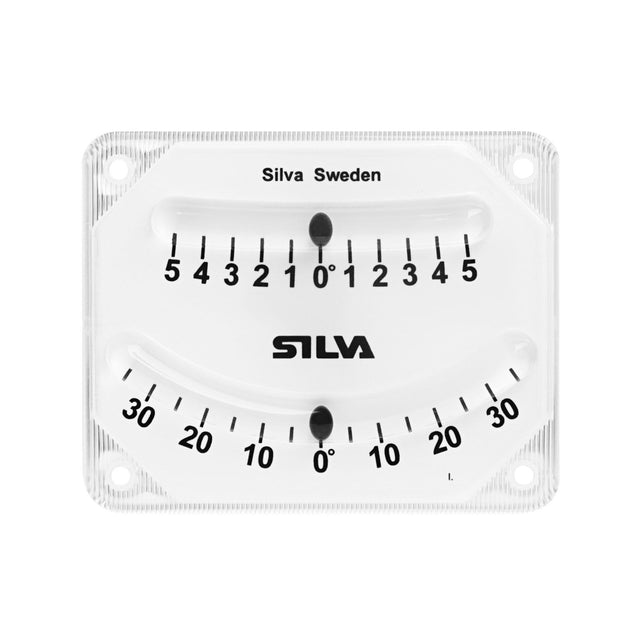

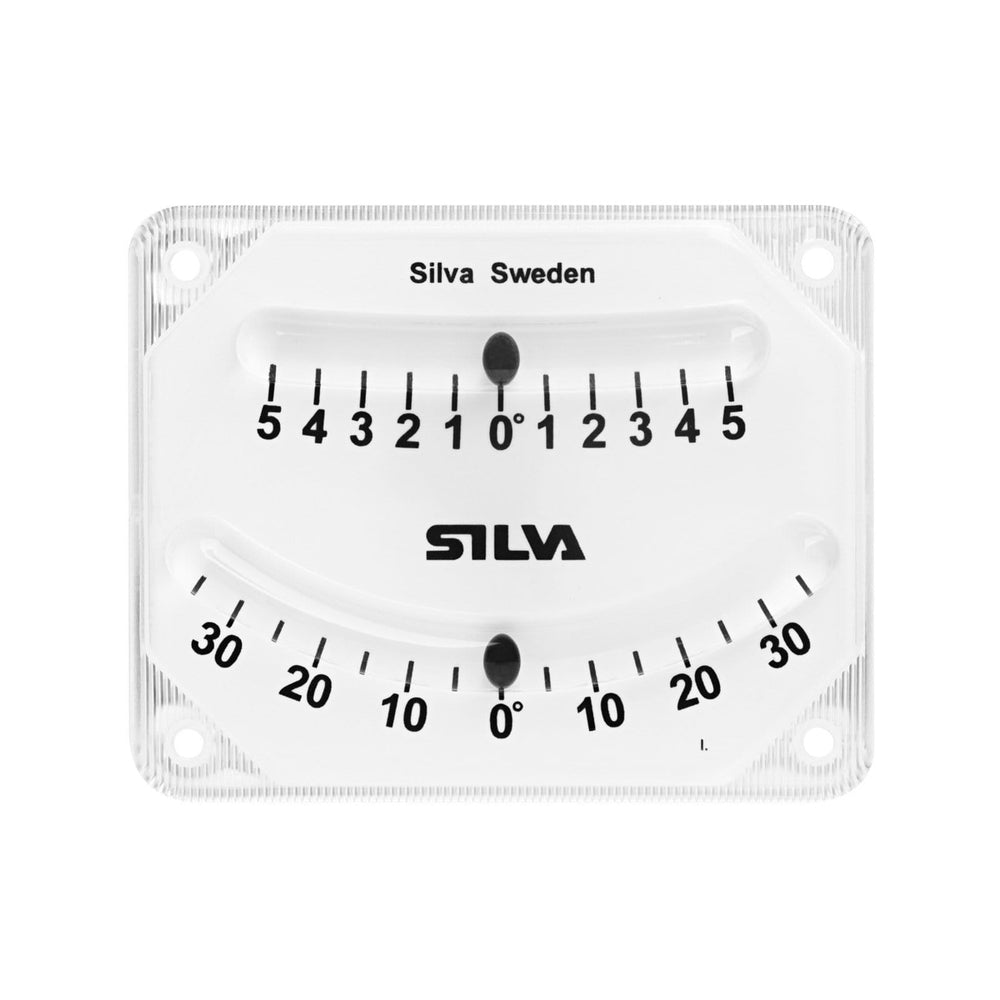

Silva Clinometer


The SILVA Clinometer is a popular clinometer for all types of vehicles. It has two scales, one ±35° and a fine tuning scale ± 5°.

• STEADY MOUNTING

Keeps in place, even in rough conditions


• EASY TO READ- Safe and swift reading so you can set the right course

The SILVA clinometer is used for checking the heeling angle on sailing boats and for the power-trim check on powerboats. It is also a perfect working instrument for other applications, such as making sure that different vehicles and equipment sits “level” or keep the desired a angle.

For angles up to ± 5°, read the top precise scale, for angles over ± 5°, use the lower scale for readings up to ±35°.



Specifications:

Article number 35188-901
Graduation

± 5° / ±35°

Material

Acrylic

Resolution degrees / mils

1° / 5°

Scales

± 35° and ± 5°

Size

10x80x100mm

Temperature operating range

-20 to +60 °C

Water resistance

IPX8 – Waterproof

Weight

47g
