$149.95

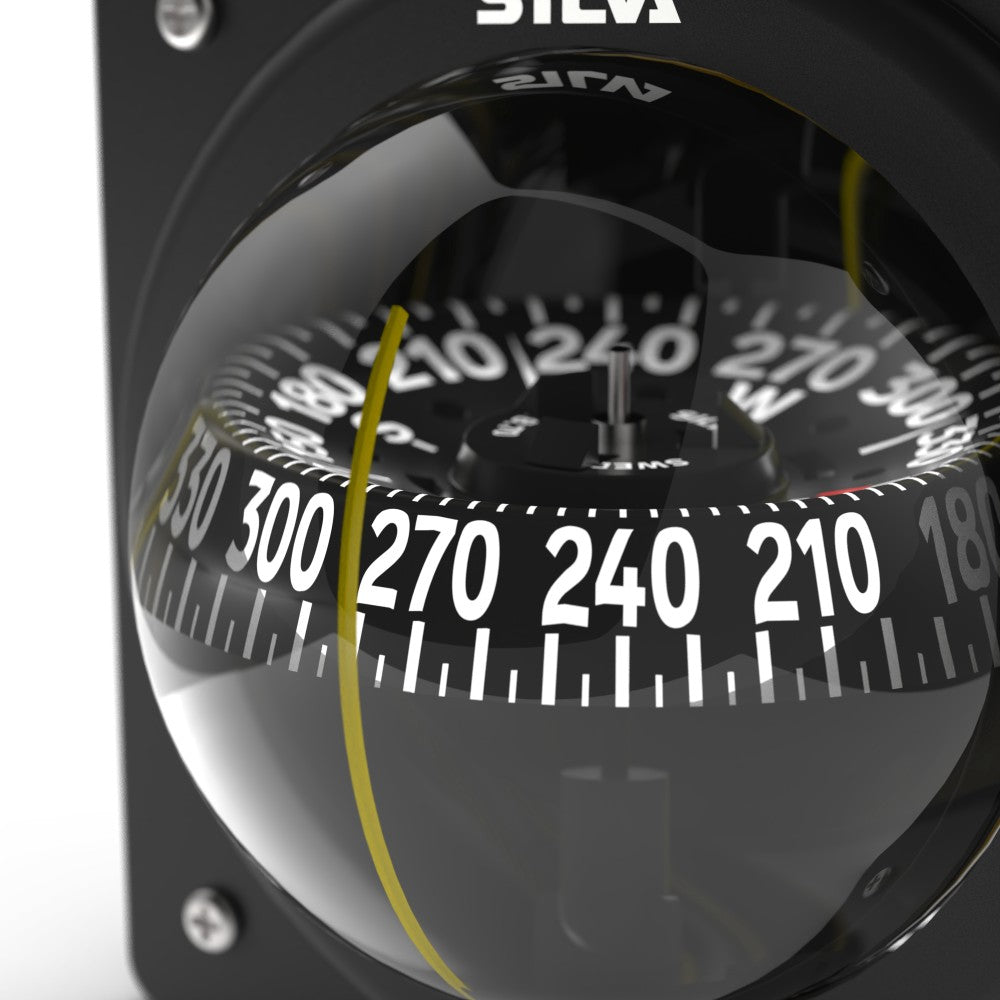

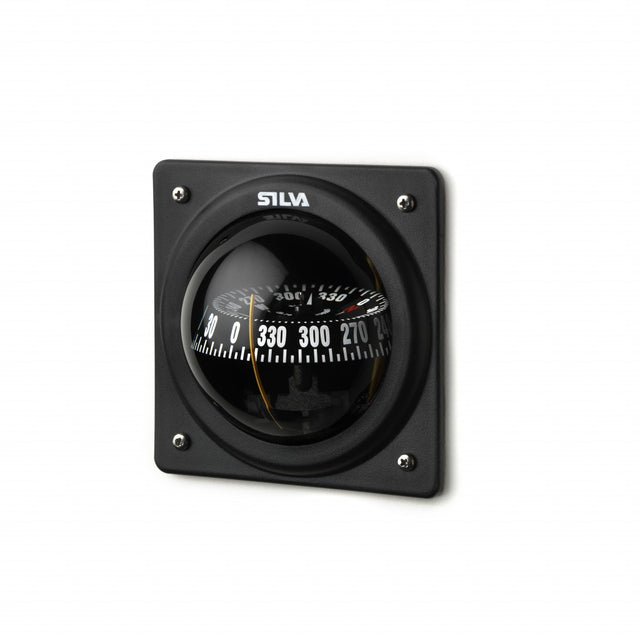

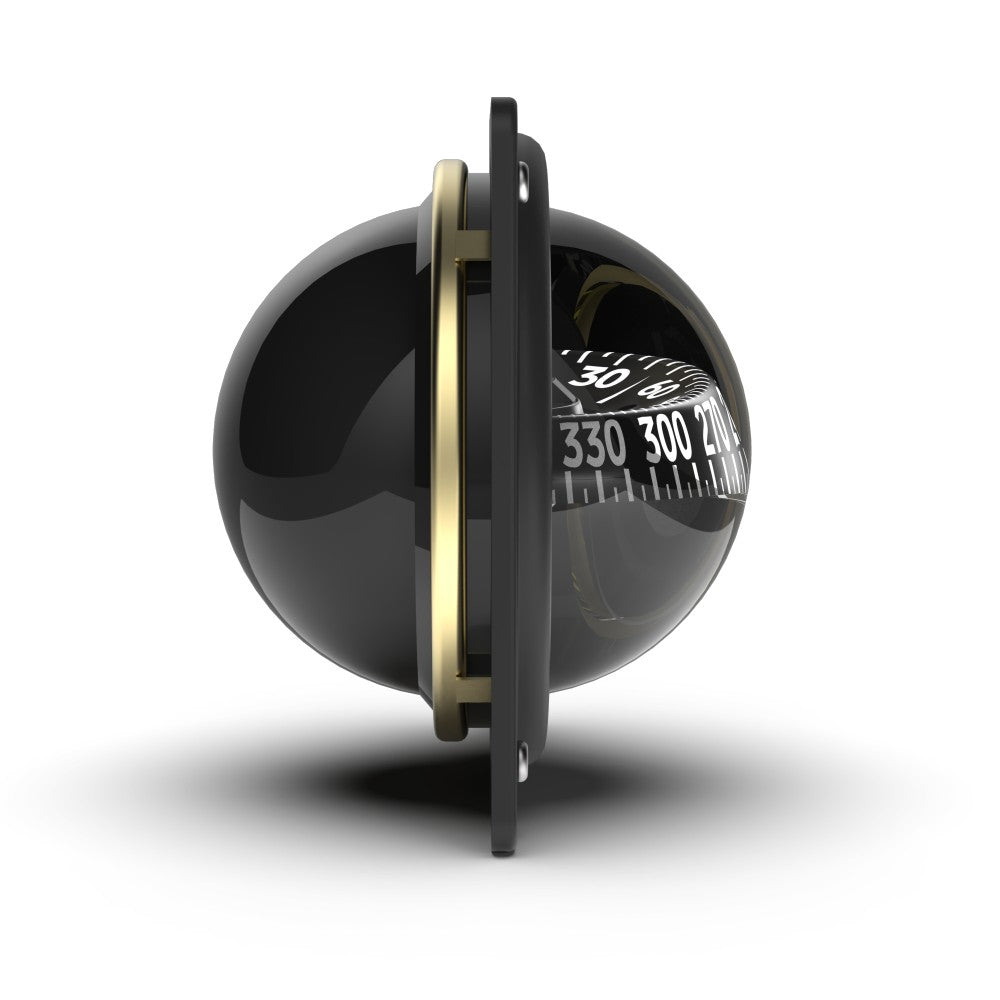

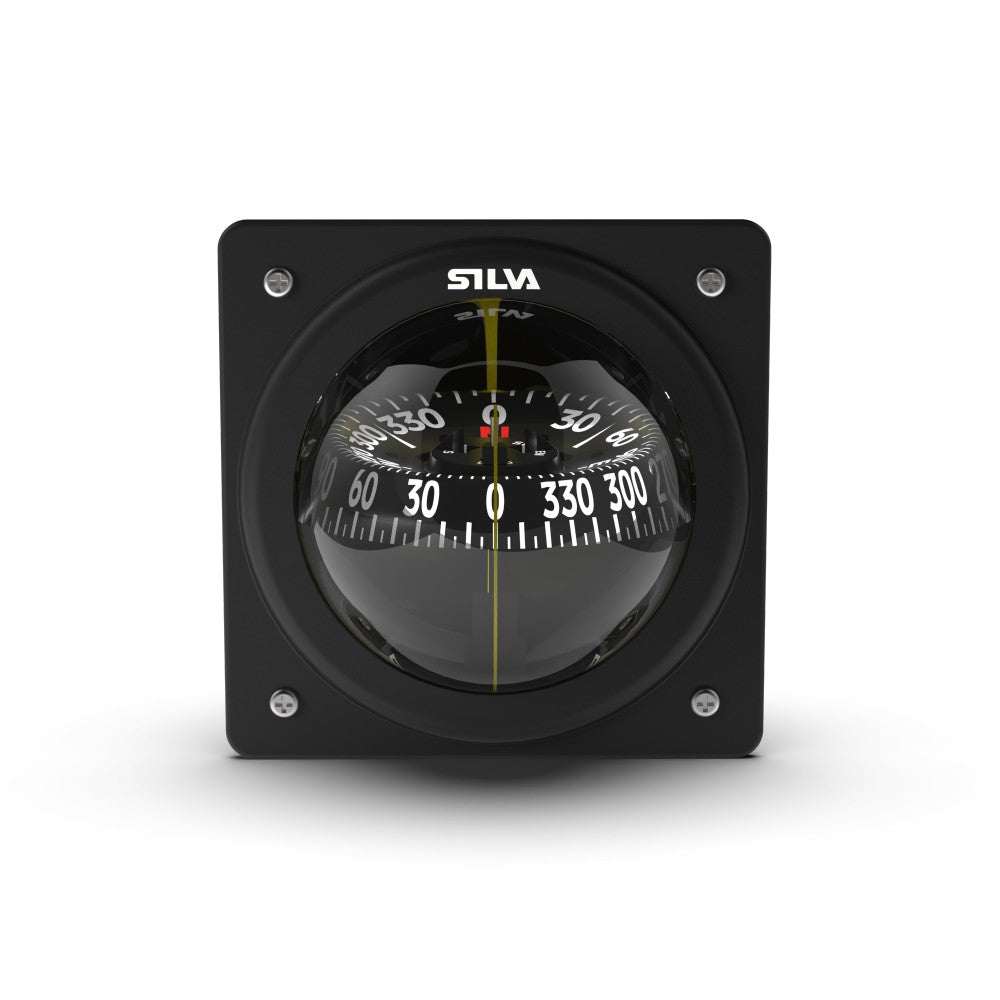

70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions
The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge,
70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.
Specifications:
Accuracy ~ +/- 17.8mils/1°
Apparent card diameter ~ 70mm
Built-in compensator ~ Optional
Card type ~ Cone
Compatibility ~ Kayaks, powerboats, sailboats
Heeling Angle ~ Roll: 30° Pitch: 30°
Illumination ~ Optional
Lubber lines ~ Centre
Materials ~ Acrylic, PC/ABS
Mounting ~ Bulkhead
Mounting angle ~ +10° to +100
Sapphire jewel bearing for friction-free movement of the compass needle ~ Yes
Size ~ 95x72 mm
Temperature operating range ~ -10 to +70 °C
Variant ~ Magnetic North
Water resistant ~ Yes
Weight ~ 344g
