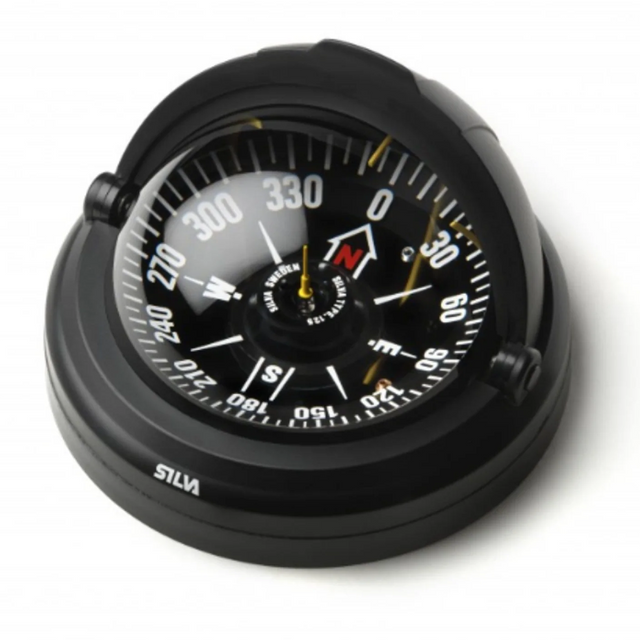

Silva 125FTC 24V Marine Compass


BUILT-IN ILLUMINATION
Enables night navigation
BUILT-IN COMPENSATOR
Deviation compensator so that you always can keep a steady course
PROTECTIVE COVER
Keeps your compass safe from outer damage
SUITABLE FOR ALL BOATS
Fits in all boat types

125FTC is a compass designed for boats and yachtsmen that demand absolute accuracy and a steady card in all conditions and heeling angles.

It is flush-mounted, with an apparent scale size of 125 mm and a gimballed cradle. Features include the possibility to compensate for magnetic field disturbance, integrated illumination in the adjustable protection cover for ideal night vision and counter-balanced lubber lines that remain vertical even in rough seas. The extended center needle eliminates parallax errors and facilitates off course bearings.

Specifications:

Article number 37195-2411
Accuracy

± 0,5° (8.9 mils)

Apparent card diameter

125mm

Built-in compensator

Yes

Card type

Flat

Compatibility

Powerboats, Sailboats

Dimensions

124mm diameter

Gimballed cradle

Yes

Heeling angle

Roll: 45° Pitch: 30°

Heeling angle scale

No

Illumination

24V., Red

Lubber lines

Centre and 2x side view at 45°

Material

ABS, Acrylic

Memory ring

No

Mounting

Flush

Mounting angle

-10° to +10°

Protective cover

Yes

Temperature operating range

-10°C to +70°C

Variant

Magnetic Equator, Magnetic South, Magnetic North

Weight

1500g
