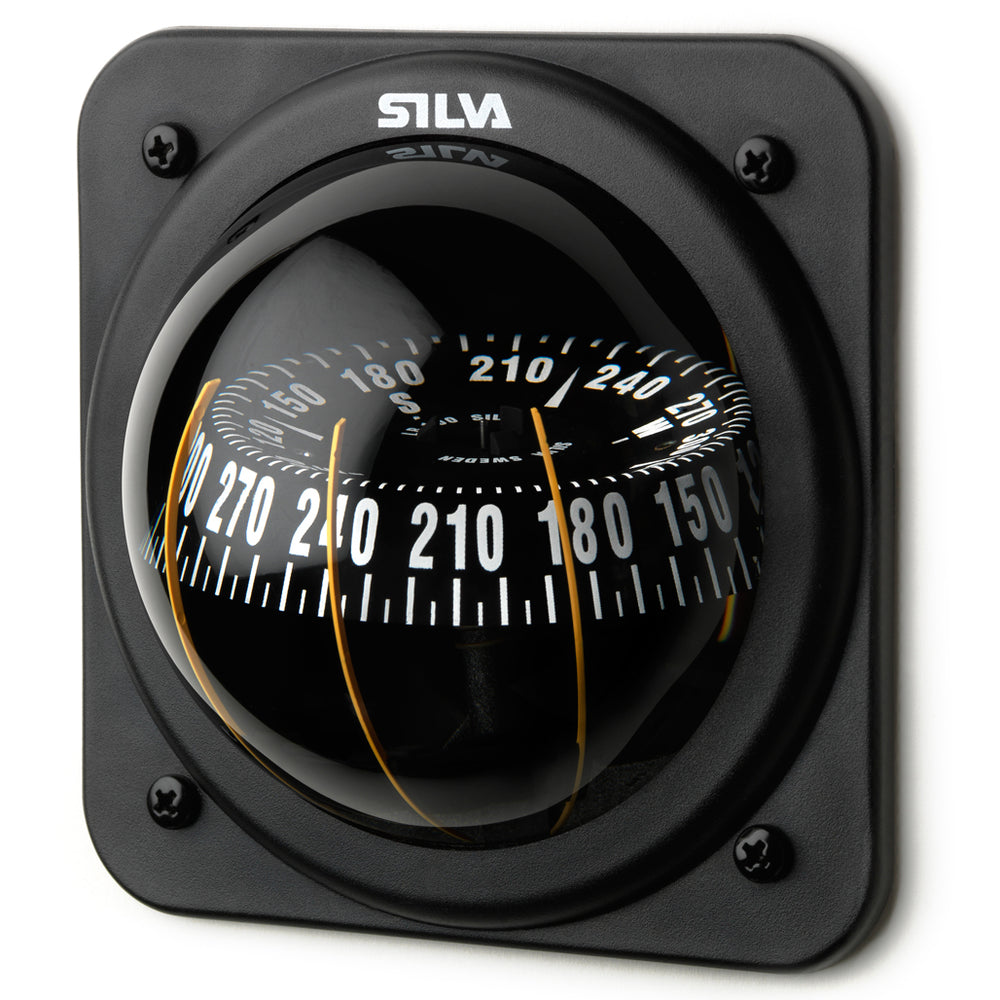

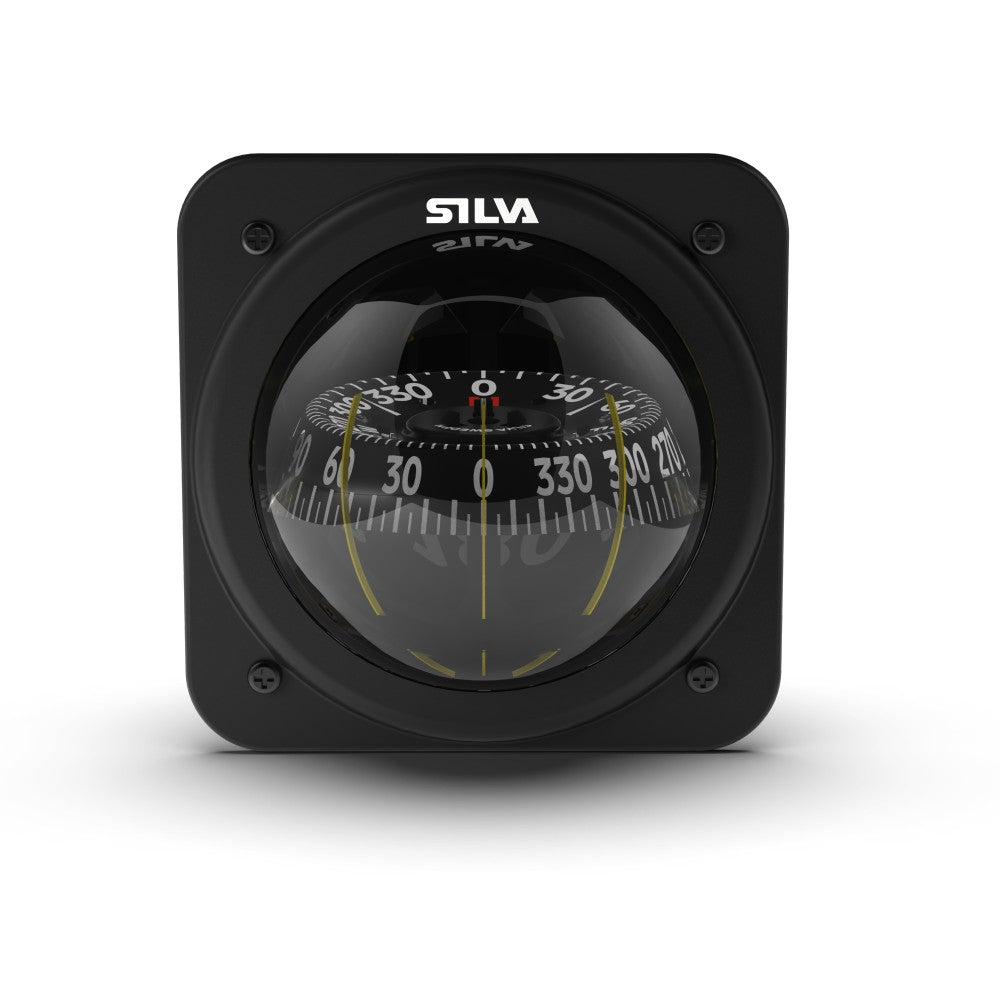

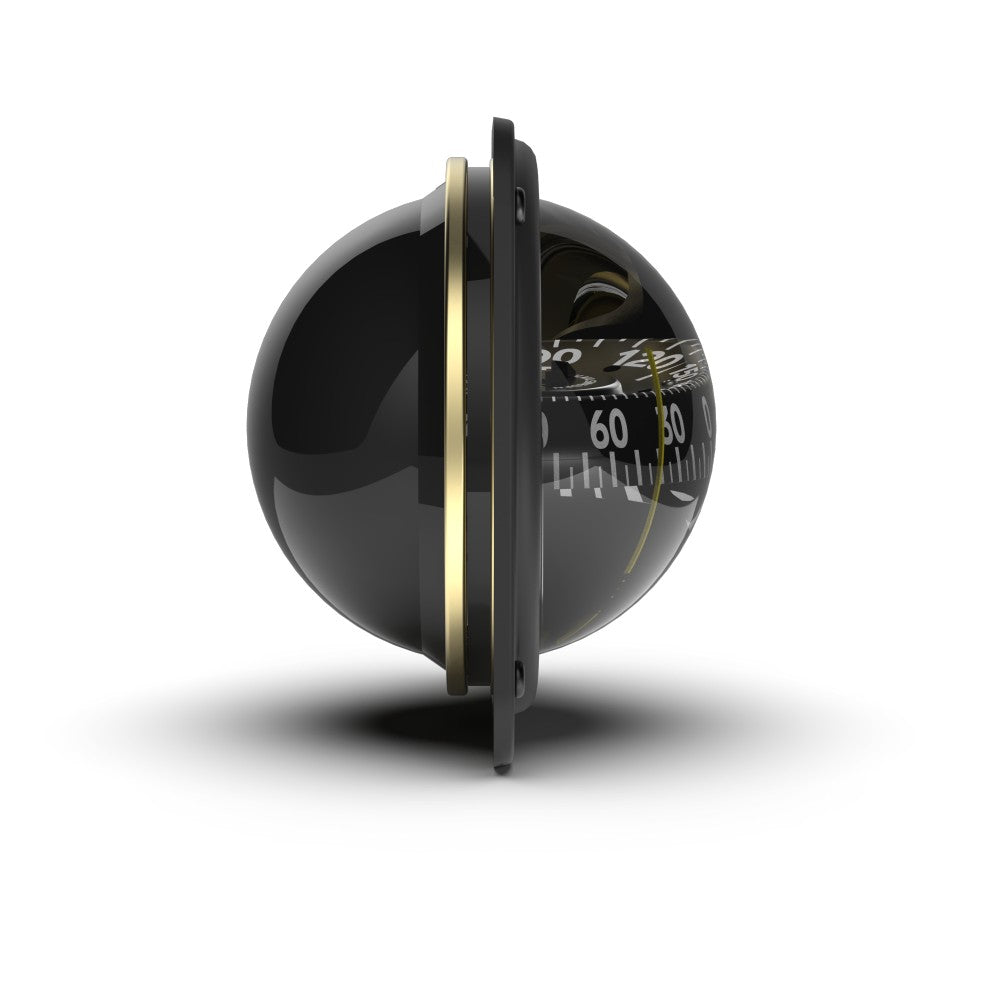

100P Marine Compass

100P is a bulkhead-mounted compass designed for sailboats and yachtsmen that demand absolute accuracy, a steady card in all conditions and high heeling angles.

It is suitable for mast-mounting thanks to front reading, 30° heeling angle and three lubber lines for multi-angle reading. The main steering scale on the horizontal part and direct reading on the vertical edge make the 100P ideal for boats with a sitting as well as a standing helmsman. With its compact size, 100P will it fit in most spaces and boats.

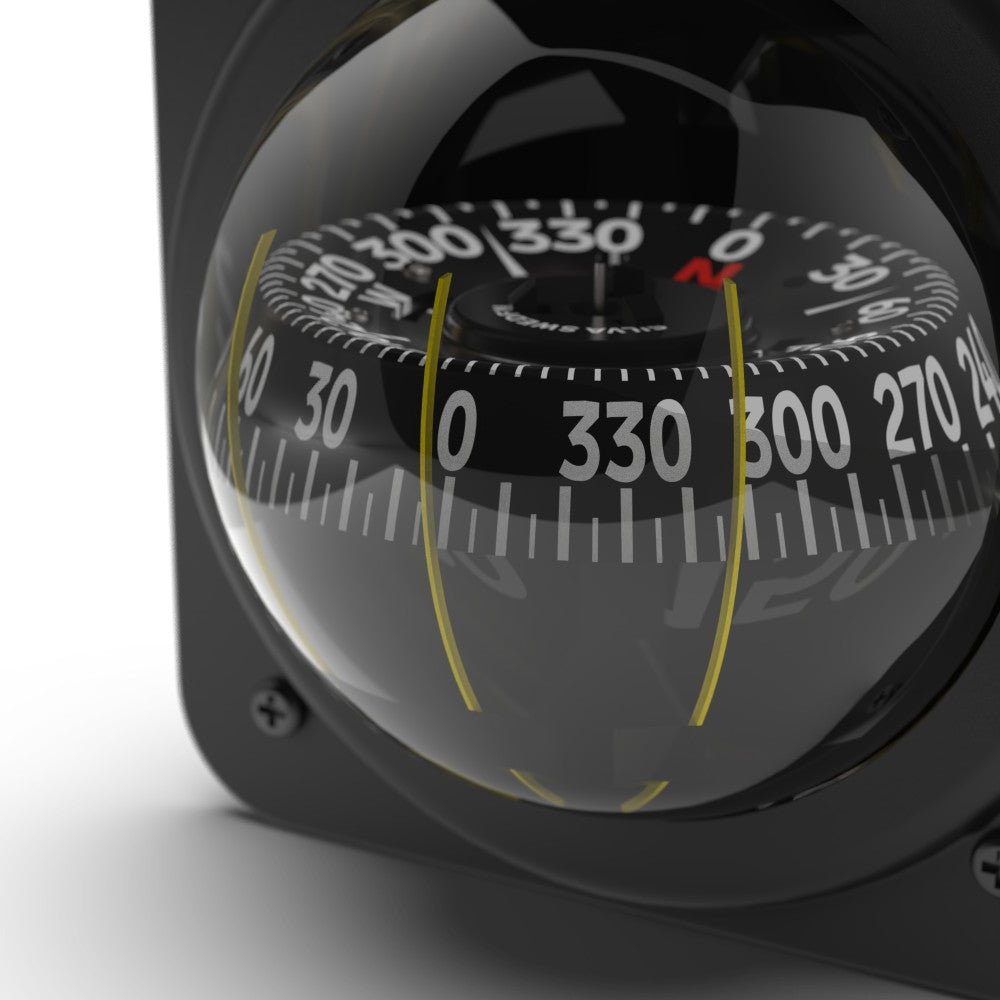

• CURVED LUBBER LINES
Accurate reading from different angles
• DOUBLE SCALES
Can be read from front and above
• STEADY MOUNTING
Keeps in place, even in rough conditions



Accuracy

± 0,5° (8.9 mils)

Apparent card diameter

105mm

Built-in compensator

Optional

Card type

Cone

Compatibility

Sailboats

Dimensions

128x115x103mm

Gimballed cradle

No

Heeling angle

Roll: 30° Pitch: 30°

Heeling angle scale

No

Illumination

Optional

Lubber lines

Centre and 2x side view at 45°

Material

ABS, Acrylic

Memory ring

No

Mounting

Bulkhead

Mounting angle

+10° to +110°

Protective cover

No

Temperature operating range

-10°C to +70°C

Variant

Magnetic Equator, Magnetic North, Magnetic South

Weight

769g
