• NEW GRAPHICS
More distinct, easier to read
• SCALE LANYARD
2 scales, soft and bendable, easy to place directly on to your route on the map.

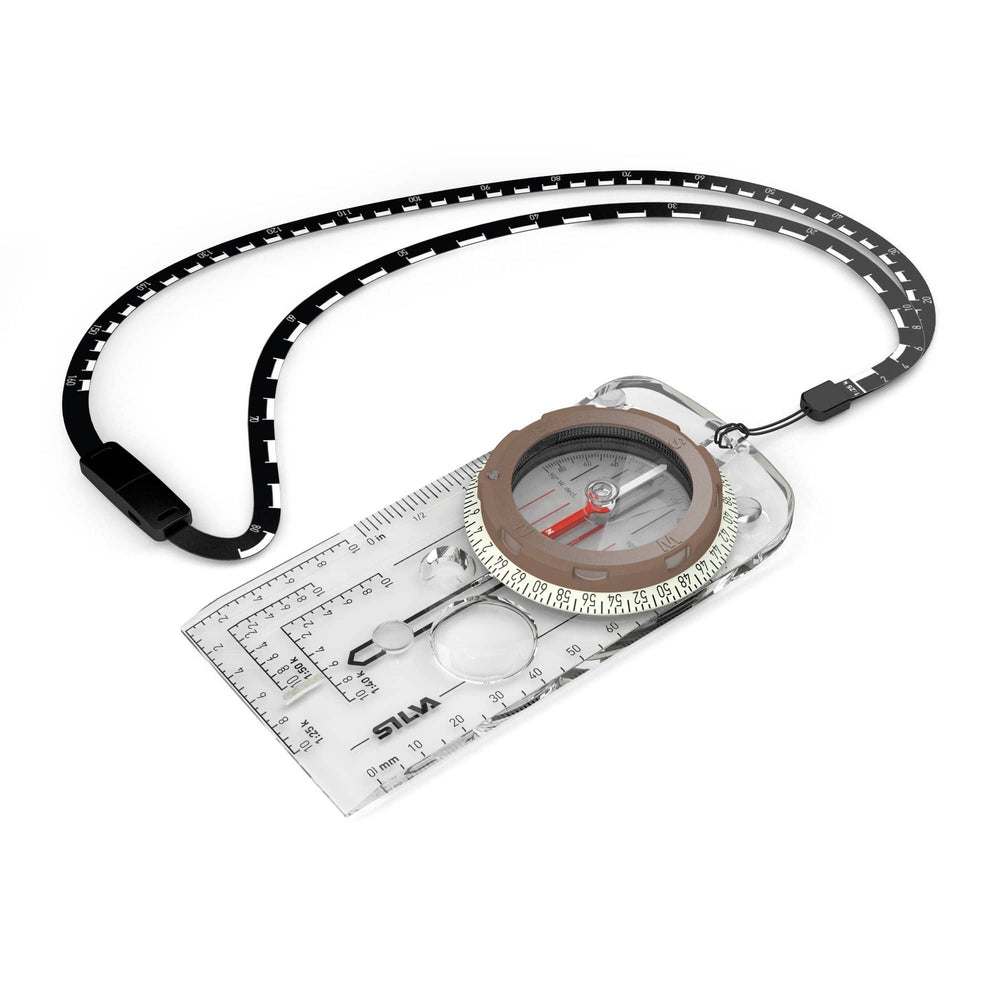

The “full-sized” base plate compass for experienced navigators – used by NATO Forces around the world. Mainly used by the infantry as a soldier’s or officer’s Compass.
Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgement of your route or to plan your route in advance.
| Accuracy | ± 1° (17.8 mils) |
|---|---|
| Altitude use | 5000m @-15 °C |
| Attachment | Detachable safety-release scale lanyard, Slope card |
| Clinometer | Yes |
| Declination adjustment | Yes |
| Graduation | 6400° / 360° |
| Illumination | 4 hours after activation in light, Luminous markings |
| Impact resistance | 30g in XYZ directions and free fall from 1.5 m height into gravel |
| Magnifying lens | Yes |
| Material | Acrylic, PC/ABS, TPU |
| Resolution degrees / mils | 2 / 50 |
| Sapphire jewel bearing for friction-free movement of the compass needle | Yes |
| Scales | Baseplate: 1:25k, 1:40k, 1:50k, mm, inch, Lanyard; 1:25, / 1:50 |
| Settling time from 90° angle to complete rest | 5 sec |
| Settling time from 90° angle within ± 3° | 2.7 sec |
| Sighting System | No |
| Silicon friction feet | Yes |
| Size | 126x60x13 |
| Type of compass | SILVA 1-2-3, baseplate |
| Temperature operating range | -30 to +60 C |
| Patented red/black N/S lines in capsule | Yes |
| Turnable capsule | Yes |
| UTM position plotting scales (Romer scales) | 1:25k, 1:40k, 1:50k |
| Variant | Magnetic Equator, Magnetic North, Magnetic South |
| Weight | 50g |
| Other | GPS scales |
